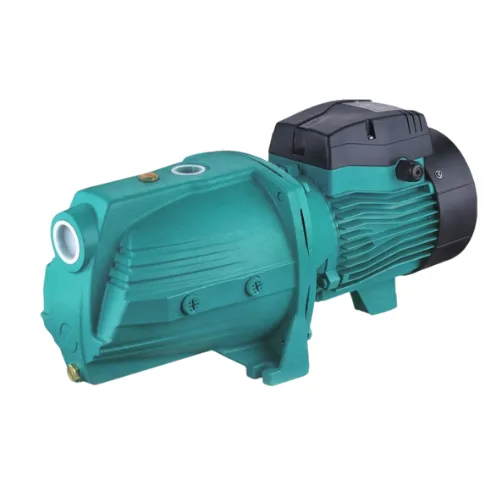

LEO AJM90 Self-Priming Jet Pump. (0.9kW, 1.2hp, 220V)
Transfers water and similar liquids with pressure boosting.
- Transfers clean water/other liquids similar to water without substantial chemical properties.
- Suitable for: home & garden, lifting water from a well, garden sprinkler irrigation, as well as pressure boosting for running water & supporting equipment.
- Stainless steel impeller.
- Waterproof IPX4 for outside installations without cover.
LEO AJM90 performance curve:
1. Max Flow Rate @ minimum of 3 bar = 65 Litres/min
2. Shut-off head of 4,5 bar.
LEO Pumps provides innovative water pump solutions including water pumps, boosters, drives, controllers and so much more, all with robust design and high-grade materials.
Product specifications:
| Model: | AJM90 |
| Power: | 0,9kW, 1.2hp |
| Voltage: | 220V |
| Insulation class: | F |
| Protection class: | IPX4 |
| Maximum suction | 5m |
| Maximum ambient temperature | 40°C |
| Maximum liquid temperature | 40°C |
| Dimensions [L x W x H]: | 418 x 190 x 150mm |
| Weight: | 16.45kg |
Materials:
| Pump Body: | HT200 |
| Impeller: | AISI304 stainless steel |
| O-ring: | NBR |
| Venturi tube: | PPO |
| Diffuser: | PPO |
| Mechanical seal: | Carbon/ceramic |
| Support cover: | AISI 403 stainless steel |
| Support: | AISI 403 stainless steel |
| Terminal board: | PC |
| Terminal box: | ABS |
| Rear cover: | ZL102 |
| Fan: | PP |
| Fan cover: | PP |
| IP rating: |
X4 |
Additional information
| Weight | 16.45 kg |
|---|---|
| Dimensions | 41.8 × 19 × 15 cm |
