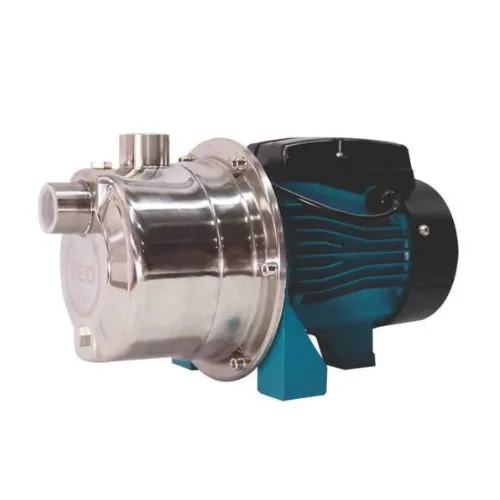

LEO AJM30S Self-Priming Jet Pump. (0.3kW, 0.4hp, 220V)
Transfers water and similar liquids with pressure boosting.
-
Stainless Steel Pump body.
-
Max Flow rate at Minimum 10m (1bar) = 40L/min.
-
Max head: 2,6 bar.
- Transfers clean water/other liquids similar to water without substantial chemical properties.
- Suitable for home & garden, lifting water from a well, garden sprinkler irrigation, as well as pressure boosting for running water & supporting equipment.
- Waterproof IPX4 for outside installations without cover
- Stainless steel impeller & built-in thermal protector
Product specifications:
| Model: | AJM30S |
| Power: | 0.3kW, 0.4hp |
| Voltage: | 220V |
| Insulation class: | F |
| Protection class: | IPX4 |
| Maximum suction | 9m |
| Maximum ambient temperature | 40°C |
| Maximum liquid temperature | 40°C |
| Dimensions [L x W x H]: | 337 x 180 x 181.5mm |
| Weight: | 6kg |
Materials:
| Pump Body: | AISI 304 stainless steel |
| Bracket cover: | AISI 403 stainless steel |
| Impeller: | AISI304 stainless steel |
| O-ring: | NBR |
| Venturi tube: | PPO |
| Diffuser: | PPO |
| Mechanical seal: | Carbon/ceramic |
| Support cover: | AISI 403/ HT200 |
| Support: | ZL104 |
| Terminal board: | PC |
| Terminal box: | ABS |
| Rear cover: | ZL102 |
| Fan: | PP |
| Fan cover: | PP |
| IP rating: | X4 |
Additional information
| Weight | 6 kg |
|---|---|
| Dimensions | 33.7 × 18 × 18.15 cm |
